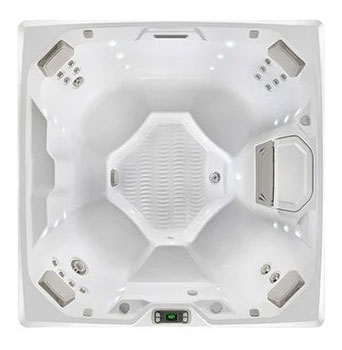

Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior.

Categories: ,

Request More Info

  • Seating Capacity 4 Adults
  • Dimensions: 6’ 8” x 6’ 8” x 33” / 2.03m x 2.03m x 0.84m
  • Water Capacity: 295 gallons/1,115 liters
  • Weight: 700 lbs./320 kg dry / 3,860 lbs./1,750 kg filled*
  • Spa Shell Options:
    • Alpine White
    • Ice Gray
    • Platinum
    • Tuscan Sun
    • Desert
  • Cabinet Options:
    • Coastal Gray
    • Espresso
    • Sable
  • Jet Count: 19
  • Hot Tub Jets:
    • 1 XL Dual Rotary jet
    • 2 Standard Single Rotary jets
    • 2 Standard Directional jets
    • 14 Directional Precision® Jets
  • Lighting System (interior): Raio® multi-color points of light
  • Lighting System (exterior): Exterior multi-color lighting with timer
  • Water Features: Vidro® backlit ribbon waterfall
  • Control System
    • IQ 2020® with LCD control panel
    • 230v/50amp, 60Hz
    • Includes G.F.C.I. protected sub-panel or 115v/20amp, 60Hz
    • Includes G.F.C.I. protected power cord
  • Heater: Titanium No-Fault® 1,000 W / 115 V or 4,000 W / 230 V
  • Energy Efficiency: FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
  • Jet Pump 1
    • Wavemaster® 7000
    • One-speed
    • 1.65 HP Continuous Duty
    • 3.5 HP Breakdown Torque
  • Circulation Pump: SilentFlo 5000® for quiet continuous filtration
  • Water Care System: FreshWater® Salt System Ready
  • Effective Filtration Area: 100 sq. ft., Dual Action, top-loading filters
  • Vinyl Cover
    • 3.5″ to 2.5″ tapered
    • 2 lb. density foam core with hinge seal
  • Vinyl Cover Colors:
    • Caramel
    • Chestnut
    • Slate
  • Entertainment systems (optional): Wireless Entertainment
  • Cover Lifters (Optional): CoverCradle II®, CoverCradle®, Lift ‘n Glide®, UpRite®
  • Steps (Optional):
    • Limelight Collection – Coastal Gray
    • Limelight Collection – Espresso
    • Limelight Collection – Sable
    • Polymer – Ash
